Single Mode Fiber
GYFTY-48
Phoslinc All-Dielectric Outdoor Optical Cable
Stranded loose tube, icky pick filled construction with FRP strength members. Safe for high-voltage environments.
Overview
What this cable is built for
Featuring a 48 fiber count, this cable utilizes a multi-loose tube design that provides superior protection against environmental stressors without the use of metallic elements.
Engineered for longevity in harsh environments, the GYFTY48 incorporates dual-layer moisture protection using water-blocking yarns and tape.
Key features
- FRP Central Strength Member
- Dual Moisture Protection
- 48 Fiber count
- HDPE Sheath
- Multi Loose Tube
Applications
- Outdoor
- All Dielectric
- Water Resistant
Specifications
Technical specifications
| Fiber count | 48F |
| Fiber type | ITU-T G.652.D single-mode |

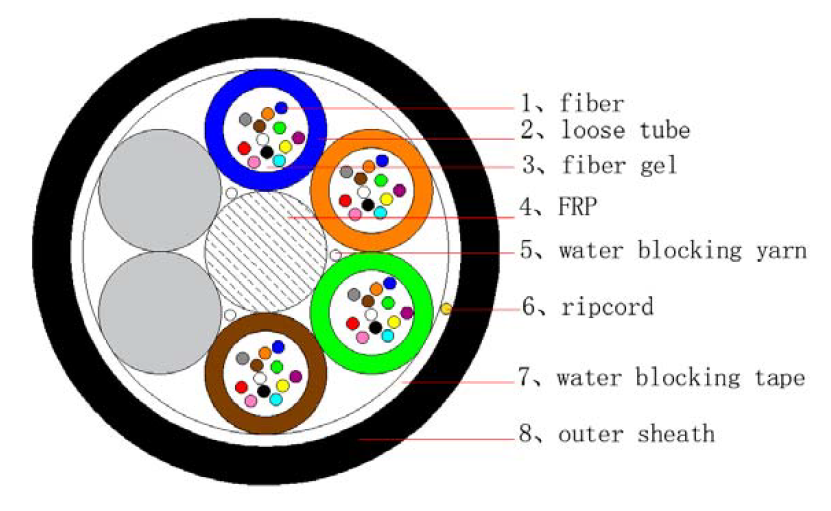

| Construction | Stranded loose tube, icky pick filled, FRP central strength member |
| Sheath | HDPE black, UV-resistant |
| Outer diameter | 0.43 in ± 0.02 (10.8 mm ± 0.5) |
| Weight (typical) | 62 lb/kft ± 20% (92 kg / km ± 20%) |
| Tensile strength | Short-term 607 lbf (2700 N) / Long-term 202 lbf (900 N) |
| Crush resistance | Short-term 57 lbf/in (1000 N / 100 mm) |
| Bend radius (min) | 12.5× OD static / 25× OD dynamic |
| Operating temperature | -40 °F to +158 °F (-40 °C to +70 °C) |
| Storage temperature | -58 °F to +158 °F (-50 °C to +70 °C) |
| Standards | ITU-T G.652.D, IEC 60794 |
| Standard length | 9,843 ft (3km)/Drum |
